Lab Test Electrical Connector Testing Certification

Lab Test Electrical Connector Testing Certification

Brand Name: Connector Testing & Certification
Model Number: Connector Testing & Certification
MOQ: 1pcs
Price: 100USD
Payment Terms: L/C, T/T
Detail Information
Connector Testing & Certification:
Connector Testing & Certification
High Light:

electrical connector testing

,

lab test connectors

,

lab test Certification

Product Description

Connector Testing & Certification;What is Connector Testing & Certification ?

Connector testing and certification

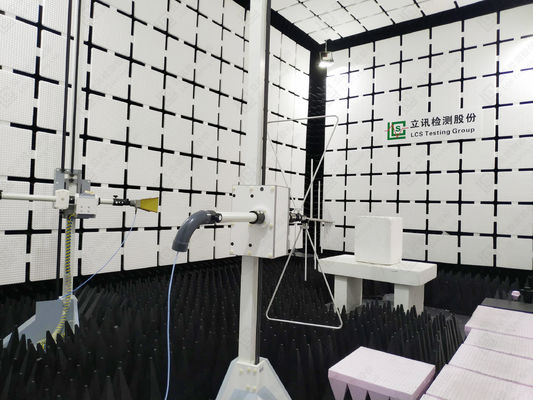

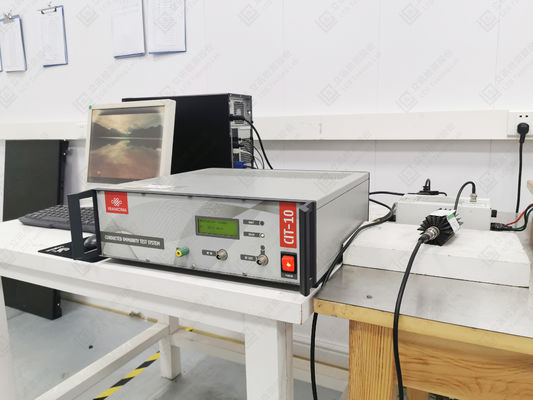

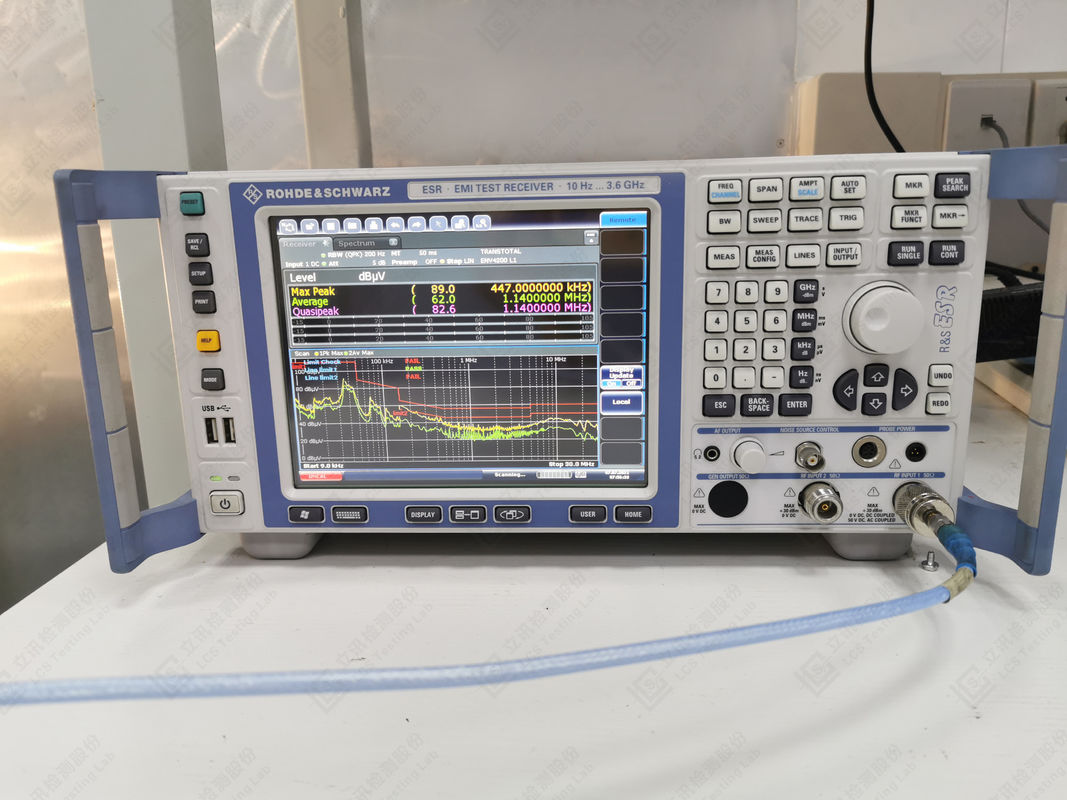

Lab Test  Electrical Connector Testing Certification 0
basic introduction
Definition of connector: CONNECTOR. Also known as connectors, plugs and sockets in China. Generally refers to electrical connectors. That is, a device that connects two active devices to transmit current or signals.
Basic performance
The basic performance of connectors can be divided into three major categories:
1. Mechanical properties
2. Electrical performance
3. Environmental performance
Common tests and reference standards
Appearance size test
Reference standard: EIA-364-18
Purpose:
1. Check the appearance of the sample to see if there are any abnormalities that will affect product performance or affect product test results.
2. Check whether product specifications and dimensions comply with product requirements and relevant standards or association specifications.
Insertion and extraction force test
Reference standard: EIA-364-13
Purpose: To verify whether the connector's insertion and extraction force meets the product specifications.
Principle: Completely insert or pull out the connector at the specified rate, and record the corresponding force value.
Durability test
Reference standard: EIA-364-09
Purpose: To evaluate the impact of repeated plugging and unplugging on the connector, and to simulate the plugging and unplugging conditions of the connector in actual use.
Principle: Continuously plug and unplug the connector at a specified rate until the specified number of times is reached.
Insulation resistance test
Reference standard: EIA-364-21
Purpose: To verify whether the insulation performance of the connector meets the requirements of the circuit design or whether its resistance meets the relevant technical conditions when it is subjected to high temperature, humidity and other environmental stresses.
Principle: Applying voltage to the insulating part of the connector causes leakage current to occur on or within the insulating part, resulting in a resistance value.
Withstand voltage test
Reference standard: EIA-364-20
Purpose: To verify whether the connector can work safely at the rated voltage and whether it can withstand over-potential, so as to evaluate whether the connector insulation material or insulation gap is suitable. Principle: Between the connector contacts and the contacts, the contacts and Apply the specified voltage between the shells and maintain it for the specified time, and observe whether there is breakdown or discharge in the sample.
Contact resistance test
Reference standards: EIA-364-06/EIA-364-23
Purpose: To verify the resistance value generated when current flows through the contact surface of the contact. Principle: By passing a specified current through the connector, the voltage drop at both ends of the connector is measured to obtain the resistance value.
Vibration test:
Reference standard: EIA-364-28
Purpose: To verify the impact of vibration on the performance of electrical connectors and their components
Vibration type: random vibration, sinusoidal vibration
Mechanical impact test
Reference standard: EIA-364-27
Purpose: To verify the impact resistance of the connector and its components or to evaluate whether its structure is solid
Test waveform: half sine wave, square wave
Hot and cold shock test
Reference standard: EIA-364-32
Purpose: To evaluate the impact of connectors on their functional quality under rapid and large temperature changes.
Temperature and humidity combined cycle test
Reference standard: EIA-364-31
Purpose: To evaluate the impact on connector performance after storage in high temperature and high humidity environments
High temperature test
Reference standard: EIA-364-17
Purpose: To evaluate whether the performance of the terminals and insulators of the connector changes after being exposed to a high temperature environment for a specified period of time.
Salt spray test
Reference standard: EIA-364-26
Purpose: To evaluate the salt spray corrosion resistance of connectors, terminals, and coatings
Mixed gas corrosion test
Reference standard: EIA-364-65
Purpose: To evaluate the corrosion resistance of connectors exposed to mixed gases of different concentrations and the impact on their performance
Wire swing test
Reference standard: EIA-364-41
Purpose: To evaluate the connector's ability to withstand repeated back and forth stress and to evaluate electrical continuity during this process
Temperature rise test
Reference standard: EIA-364-70
Purpose: To evaluate whether the temperature rise of the terminal exceeds the specified value when the terminal carries rated current.
